WEAVETECH

Since 1980s, Weavetech has been at the forefront of indigenous technology development in the field of Twisting & Weaving machineries leading R&D efforts specific to answer to the growing needs of a developing market like India. Leveraging on core competencies in research and development, Weavetech offers a portfolio of products & solutions that have proved to be highly cost-effective & offers the best value to the Textile Industry.

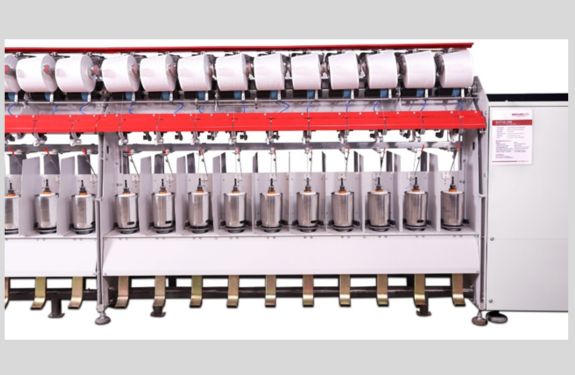

TFO Alpha Series

TFO - ALPHA-Series

The ALPHA-Series TFO Twister by Weavetech is engineered for mills that demand high-speed, high-productivity twisting across all spun yarn counts and blends—including Spandex. This advanced machine is ideal for dyeing operations seeking soft-package dye-ready yarns directly from the twister, trimming processing steps while delivering unmatched flexibility and performance.

Application

Imparting twists on medium to coarse count spun yarns & providing reliable tension-controlled processing of elastic yarns.

Technology

  • Take up Speed: Up to 60 meters/min (Mechanical)
  • Spindle Speed: Up to 12,000 RPM (Mechanical)
  • Yarn Type: Spun Yarns (Natural, Synthetic & Blends)
  • Feed (Knotless): Up to 2.4 Kg
  • Take up Type: Individually Mounted Cradles with Taper Tubes
  • Yarn Range: 2.6 – 60 Ne (Resultant)
  • Twists Range: 160 – 1600 TPM / 4 – 40 TPi
  • Spindle Range: 125mm, 135mm, 145mm, 170mm, 200mm
  • Traverse Type: Parallel Cheese, Edge Breaking & Anti-Patterning
  • Models: ALPHA-200, ALPHA-250

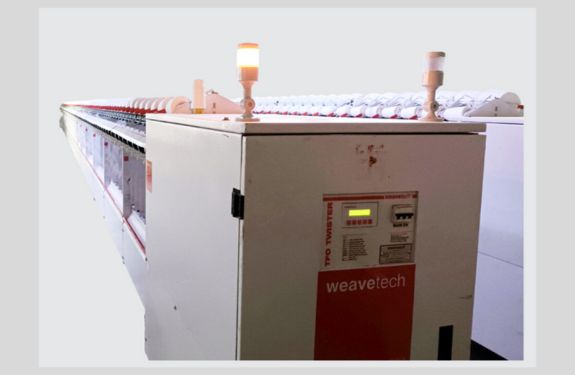

TFO S200 Series

TFO - S 200 Series

The S200-S Series TFO Twister from Weavetech is designed for job workers and independent twisters who need a reliable, cost-effective solution for twisting fine to medium count spun yarns. Built with a focus on performance and durability, it ensures consistent quality while keeping operating costs low. This model is especially suitable for synthetic and blended yarns, making it a practical choice for today’s spinning industry.

Application

Imparting twists on fine to medium count spun yarns.

Key Features

  • Take up Speed: Up to 50 meters/min (Mechanical)
  • Spindle Speed: Up to 11,000 RPM (Mechanical)
  • Yarn Type: Spun Yarns (Synthetic & Blends)
  • Feed (Knotless): Up to 1.0 Kg
  • Take up Type: Central Shaft Mounted Cradles with Taper Tubes
  • Yarn Range: 5 – 50 Ne (Resultant)
  • Twists Range: 160 – 1600 TPM / 4 – 40 TPi
  • Spindle Range: 110mm, 125mm, 135mm
  • Traverse Type: Parallel Cheese, Edge Breaking & Anti-Patterning
  • Models: S200-S (Single-Deck)
