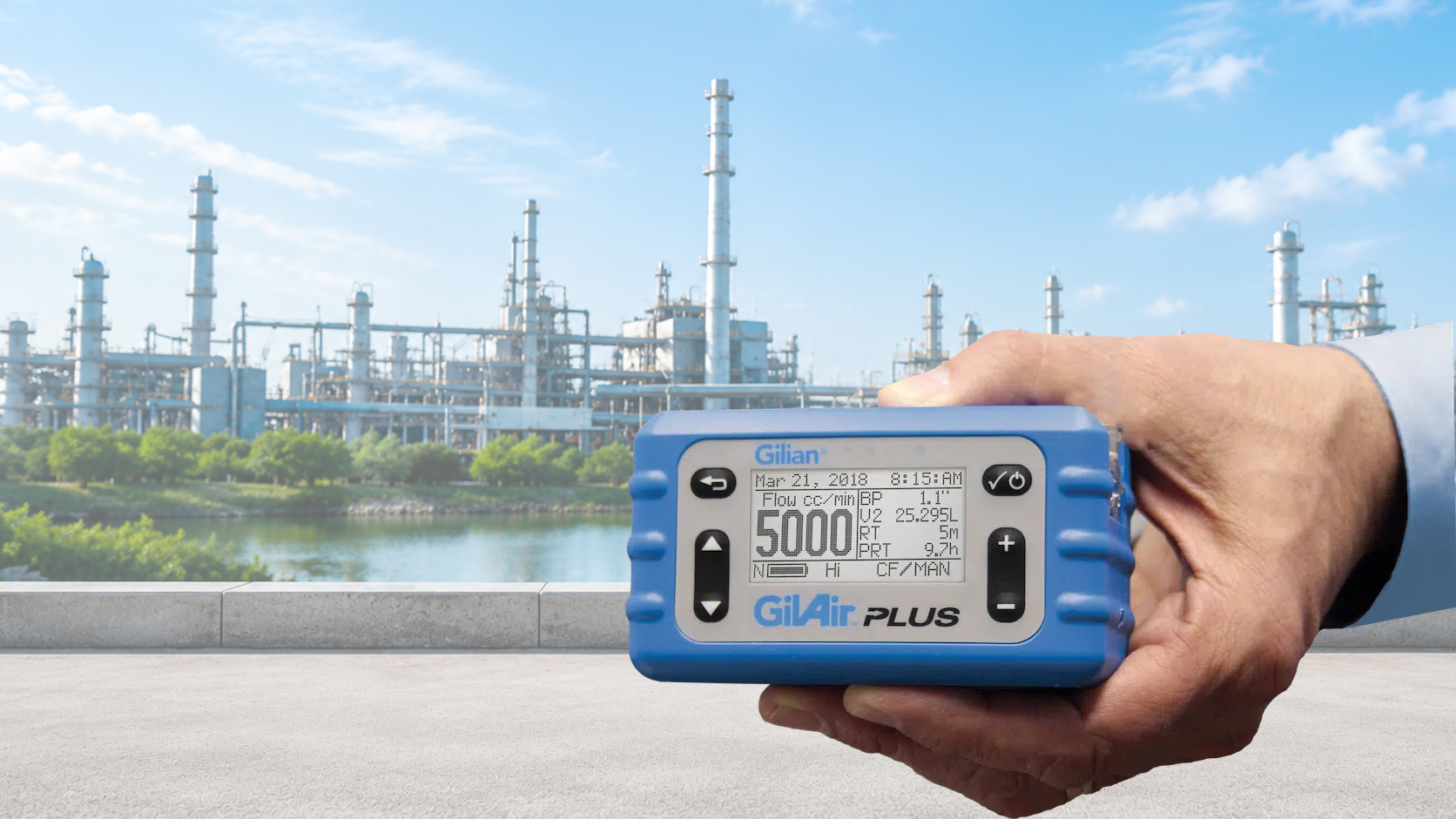

GilAir Plus Personal Air Sampling Pump (1 – 5,100 cc/min)

Innovation Delivered — performance, versatility, superior design, and result validation. supplier, and exporter, Mumbai-India.

The GilAir Plus pump is designed for industrial hygiene professionals who require the ultimate in performance, versatility, and ease of use. QuadMode Air Sampling Technology acts like 2 pumps in 1, performing high-flow and low-flow constant pressure and constant flow sampling with a single pump and no external adapters. GilAir Plus docks provide charging and communication functions; once docked, the Gilian CONNECT PC application allows users to review datalogs, generate sampling reports, manage sampling programs, and create pump set-up profiles for fleet deployment.

Key Features

  • QuadMode Air Sampling Technology: high-flow (450–5,100 cc/min) and low-flow (20–499 cc/min) constant pressure & constant flow, single pump, no adapters
  • Selectable Automatic Fault Recovery: auto-restarts if sample tubing becomes crimped or briefly blocked (up to 10 attempts every 3 minutes)
  • SmartCal Automatic Calibration via the dock, recorded pre/post-sample in the pump's datalog
  • High back-pressure capability up to 40″ H2O in both high and low flow modes
  • Bluetooth connectivity for remote monitoring up to 5 meters away, plus mobile app (Gilian CONNECT Mobile) motion monitoring, in-process auditing, and automatic condition reports
  • Barometric pressure compensation maintaining accuracy at altitudes up to 8,000 ft

Specifications

Parameter Specification
Flow Range Constant flow 20–5,100 cc/min; constant pressure 1–5,100 cc/min, no external adaptors
Accuracy Flow Display & Constant Flow: ±5% or 3 cc/min, whichever larger; Constant Pressure: ±10% of back-pressure
Run Time 8 hour minimum; continuous sampling from dock
Dimensions / Weight 4.3 x 2.4 x 2.4 in (10.9 x 6.1 x 6.1 cm) / 20.5 oz (581 g)
Battery Removable rechargeable NiMH pack, optional alkaline pack, or DC power; charges under 3.5 hours
Warranty 2 years for pump, 5 years for keypad, 1 year on battery pack, lifetime on belt clip
Approvals ISO 13137:2013 Compliant; Intrinsic Safety (US/Canada NRTL, ATEX); CE

Kits & Ordering

Offered as Pump Only (Basic, Data-logging, BT Data-logging, STP, BT STP models), and as Single, Three, or Five Unit Starter Kits in US/Euro/UK plug configurations. Three- and five-station docks are included with multi-pump kits.
