Model No : 500X
Compact, Portable & Real-Time Environmental Monitoring Solution manufacturer, supplier, and exporter, Mumbai-India.

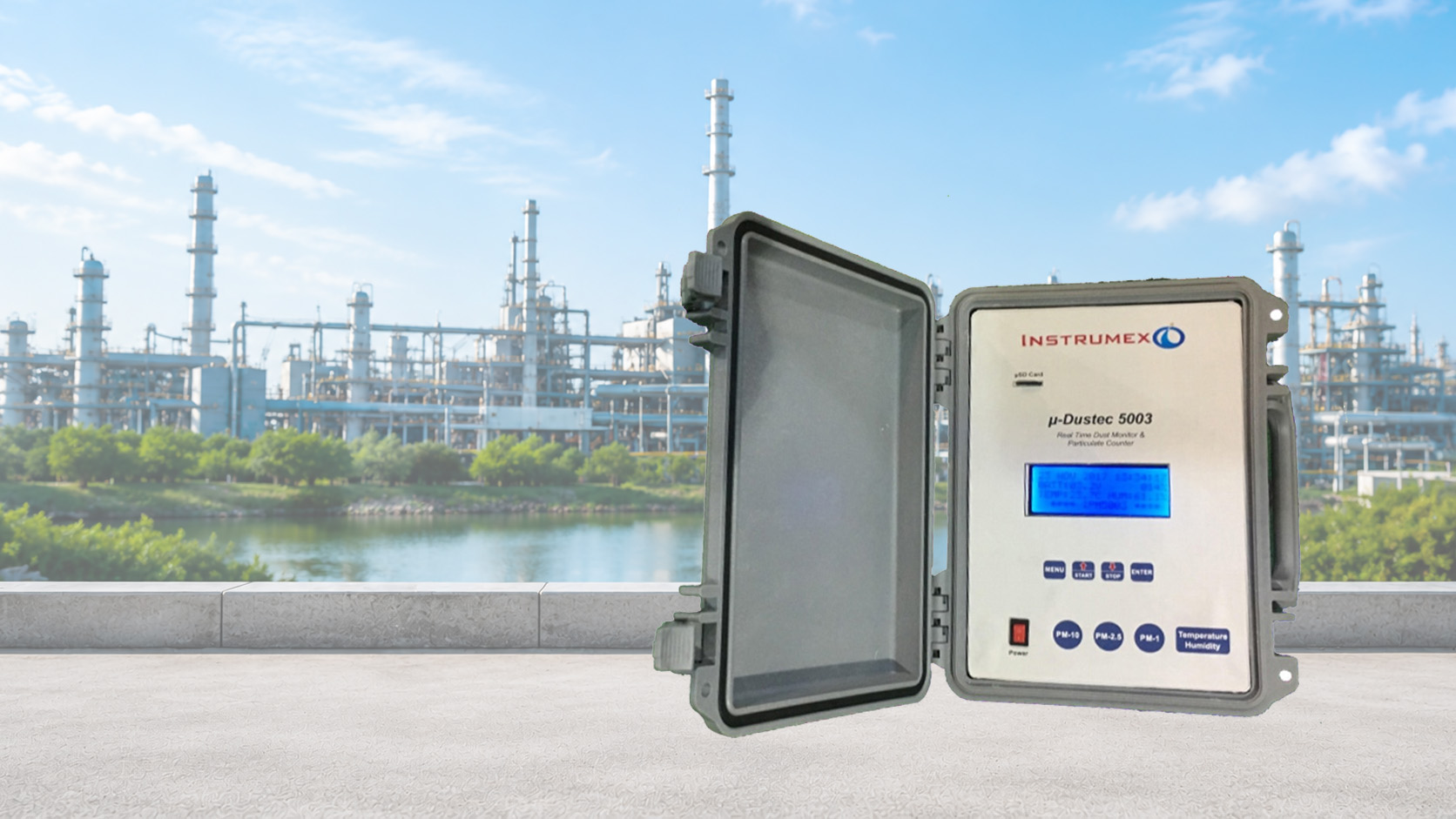

The INSTRUMEX MICRO DUSTEC-500X is a portable real-time air quality monitoring system designed for continuous measurement of particulate matter, gaseous pollutants, and meteorological parameters. Combining the capabilities of a fixed ambient air quality monitoring station with the convenience of a lightweight portable instrument, the MICRO DUSTEC-500X is ideal for environmental surveys, industrial hygiene studies, construction site monitoring, pollution assessment, and research applications.
The system utilizes advanced laser light scattering technology for real-time particulate monitoring and can simultaneously measure dust concentration, particle counts, gases, temperature, and humidity. With battery-powered operation, onboard data storage, and optional wireless communication, the MICRO DUSTEC-500X delivers accurate environmental data wherever monitoring is required.
Applications
- Construction Site Monitoring
- Industrial Pollution Monitoring
- Traffic Pollution Monitoring
- Urban Air Quality Assessment
- Environmental Compliance Monitoring
- Research & Academic Studies
- Occupational Health & Safety Monitoring
- Indoor Air Quality Monitoring
- Mining & Quarry Monitoring
- Environmental Impact Assessment (EIA) Studies
- Smart City Environmental Surveys
Monitored Parameters
Dust Parameters
- PM1.0
- PM2.5
- PM10
Weather Parameters
- Ambient Temperature
- Relative Humidity
How It Works
The DUSTEC-500X uses a high-intensity Class-1 laser diode and optical light scattering technology to continuously detect and measure airborne particulate matter. The system calculates dust concentration in real time and simultaneously provides particle count information across multiple particle size channels.
Environmental sensors measure temperature and humidity, while optional gas sensors monitor critical air pollutants. All collected data is displayed on the onboard LCD display and stored on the integrated MicroSD card for later analysis.
The portable battery-powered design allows deployment in locations where permanent monitoring stations are not practical, making it ideal for temporary surveys and mobile environmental assessments.
Key Features
Real-Time Dust Monitoring
Continuous monitoring of PM1.0, PM2.5, PM10, and particle count concentrations.
Advanced Laser Technology
High-intensity Class-1 Laser Diode utilizing optical light scattering technology for accurate particulate measurement.
Multi-Channel Particle Analysis
Available in:
- 3 Channel Model (PM1.0, PM2.5, PM10)
- 6 Channel Model (0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm)
- 8 Channel Model (0.3μm, 0.5μm, 0.7μm, 1μm, 2.5μm, 4μm, 5μm, 10μm)
Portable & Lightweight
Compact design weighing approximately 1 kg for easy transportation and field deployment.
Battery-Powered Operation
Rechargeable Li-Ion battery providing up to 8 hours continuous operation.
Long Duration Battery Option
Optional extended battery package providing up to 24 hours runtime.
Data Logging Facility
Built-in MicroSD card stores monitoring data with user-selectable logging intervals from 1 to 10 seconds.
Excel Compatible Reports
Monitoring data is stored in a format suitable for direct analysis and reporting.
Environmental Monitoring
Simultaneously measures dust concentration, temperature, humidity, and optional gas parameters.
Optional Online Monitoring
RS-485 and GPRS communication options available for remote real-time data transmission.
IP65 Weatherproof Enclosure
Designed for outdoor applications with protection against dust and rain.
User Adjustable Calibration
Software-based calibration factor adjustment for different environmental conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Optical Light Scattering |
| Light Source | High Intensity Class-1 Laser Diode |
| Dust Measurement Range | 0.01 μg/m³ to 10,000 μg/m³ |
| Particle Size Range | 0.3 μm to 10 μm |
| Particle Count Rate | 10,000 Particles/Second |
| Total Flow Rate | 1.2 LPM |
| Display | 20 × 4 LCD |
| Data Storage | MicroSD Card |
| Logging Interval | 1–10 Seconds |
| Temperature Range | -20°C to +50°C |
| Humidity Range | 0–95% RH |
| Battery Backup | Up to 8 Hours |
| Optional Battery Backup | Up to 24 Hours |
| Communication | RS-485 / GPRS (Optional) |
| Protection Class | IP65 |
| Weight | Approx. 1 kg |
| Dimensions | 24 × 20 × 11 cm |
Benefits
Instant Air Quality Assessment
Provides immediate visibility of dust and pollution levels without waiting for laboratory analysis.
Portable Monitoring
Ideal for temporary monitoring projects, environmental surveys, and site inspections.
Easy Deployment
No complex installation required; simply place the unit and begin monitoring.
Cost-Effective Solution
Provides many of the capabilities of a fixed monitoring station in a compact portable package.
Reliable Environmental Data
Supports environmental compliance, pollution assessment, and decision-making through accurate real-time measurements.
Why Choose MICRO DUSTEC-500X?( Why It Helps)
The MICRO DUSTEC-500X combines portability, real-time monitoring, particle counting, environmental sensing, and optional gas monitoring into a single rugged platform. Its lightweight design, battery-powered operation, and rapid deployment capability make it an ideal solution for professionals requiring accurate air quality data in the field.
Proudly Developed in India
Designed, developed, and manufactured by Instrumex, the MICRO DUSTEC-500X reflects our commitment to innovation, reliability, and customer satisfaction. Built for demanding field applications, it delivers dependable performance and comprehensive environmental monitoring wherever it is needed.
