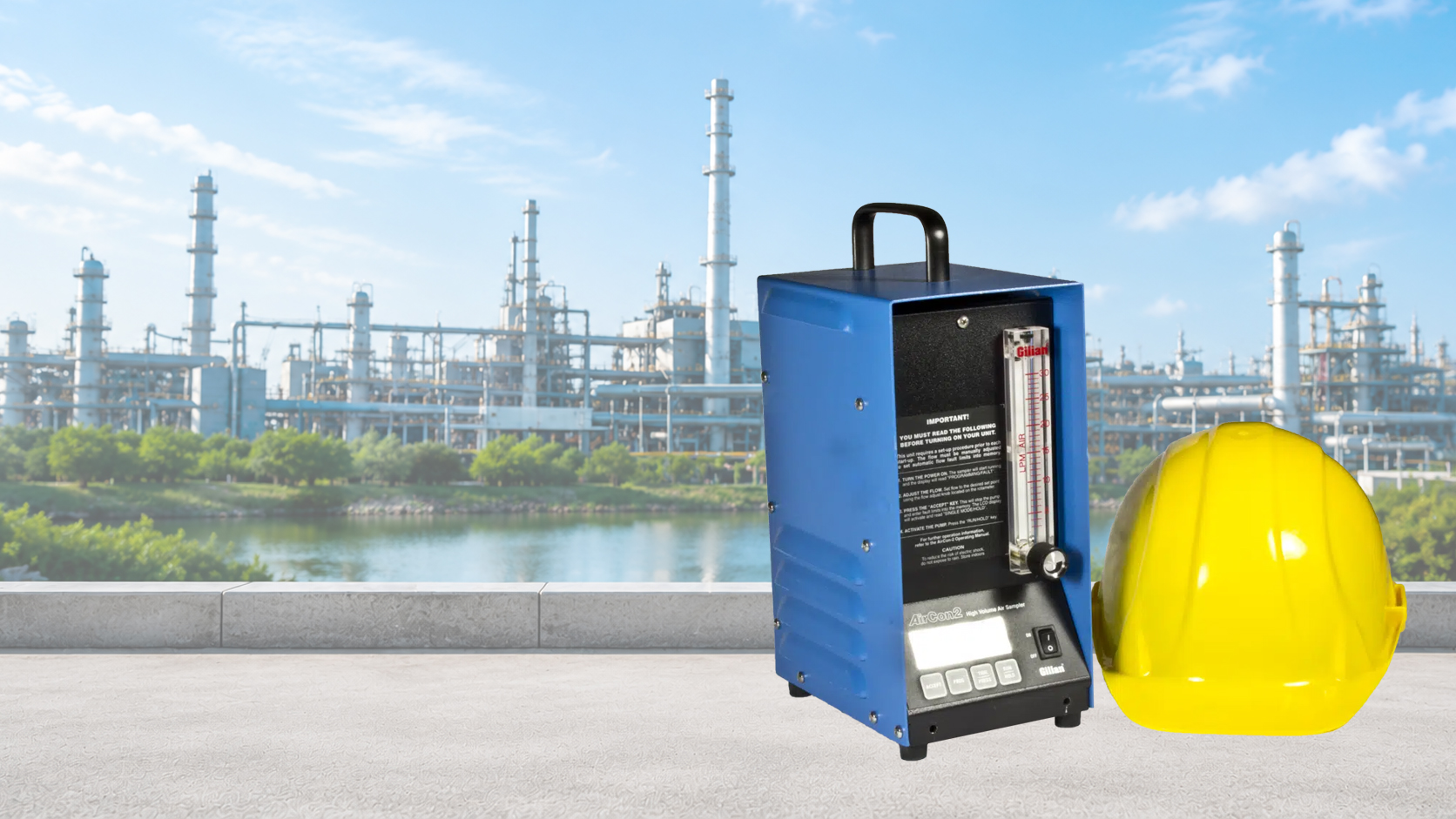

Gilian AirCon-2 Area Air Sampling Pump (2 – 30 LPM)
High Volume Area Air Sampler.
The AirCon-2 offers an extended 2–30 LPM flow range designed for collecting particulates across a given plant area, rather than being worn by an individual. It is fully programmable with up to three custom timing routines for unattended sampling for up to 99 hours, with a touchpad and LCD display for easy setup of starts, stops, delays, holds, and cycle counts.
Key Features
- Extended flow range: 2–30 LPM for area/plant sampling
- Fully programmable: up to 3 custom timing routines, unattended sampling up to 99 hours
- Instant Fault Function locks the display and alerts the operator if a fault occurs
- Instant Pressure Check: back-pressure load readable on the LCD at the press of a button
Specifications
| Parameter | Specification |
|---|---|
| Flow Range | 2–30 LPM |
| Constant Flow | 2–30 LPM at pressures up to 7 psi |
| Run Time | 8 hour minimum |
| Weight | Main unit 12 lbs (5.4 kg); 4-hour battery pack 11.5 lbs; power module 2 lbs |
| Charging Time | 14 hours operational, 8 hours non-operational |
Kits & Ordering
Ordering options include the DC-programmable sampler unit, power modules (US/Euro plug or without plug), a 4-hour battery pack, sampling mast and hose, and a carrying case.
