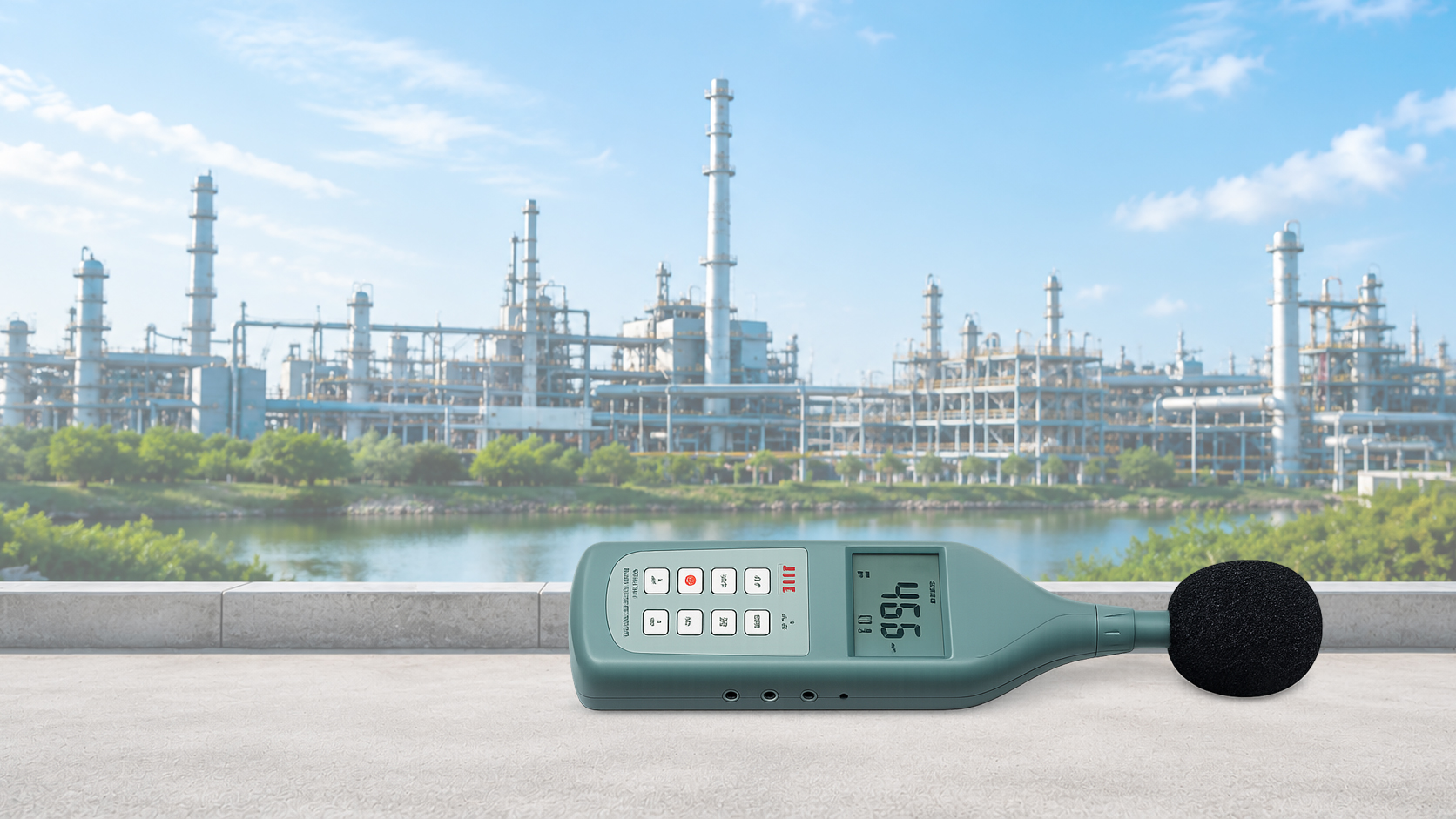

Model No : SL-1350
Sound Level Meter / Noise Level Meter manufacturer, supplier, and exporter, Mumbai-India.
The HTC-1350 is a highly featured instrument to be used for sound level measurement. It is easy to use, having advanced features and user friendly. It has RS-232 communication which optional too. It basically used to measure the current sound pressure level, Equivalent Continuous A sound pressure level & statistic analysis.
Key Features
- Auto Manual Shutdown
- Low battery indicator
- DC Output – 0-1.3V 10mV.db
- 94dB in full calibration at (1KHz)
- Optional RS-232 Communication
- Alarm Volume: 30-130dB
- Alarm O/P : LED optional relay output
- Backlight
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency | 31.5Hz – 8KHz |
| Measurement |
LP 30-130dB (A) 35-130dB (B) 35-130dB (F) Leq 30-130dB 10sec,1min,5min,10min, 15min,30min,1hr,24hr LN 0-100% |
| Resolution | 0.1 dB |
| Accuracy | 1dB |
| Memory | Max. Value (30 groups) |
| Alarm | Electron |
| Power Supply | 4 x 1.5V AAA (UM-4 Battery) |
| Dimension | 236 x 63 x 36mm |
Model No : 4030
SL-4030 is a Sound level meter is a mini pocket type, IEC61672, Class-2 Sound Level Meter. It has durable, long lasting component including a strong, light weight ABS plastic housing case. Its pocket and light weight design allow for one-hand operation.LCD display for low power consumption & clear read-out even in bright ambient light condition.
Key Features
- Large LCD Display, easy to read.
- Time Weighting & Frequency weighting meet.
- 0.5" standard out size of the microphone.
- External calibration VR.
- Condenser microphone for high accuracy & long-term stability.
- Low battery indicator.
- Pocket and light weight design allow one hand operation.
- Warning indicator for over and under load.
Technical Specifications
| Technical Specifications | |
|---|---|
| Frequency Range | 31.5 to 8 KHz. |
| Resolution | 0.1dB |
| Accuracy | Class 2 / Type 2 |
| Range Selector | 3 ranges (30-80dB, 50-100dB, 80-130dB); 50dB on each step |
| Microphone | Electric condenser microphone |
| Output | AC output- AC 0.5 Vrms corresponding each range step DC 0.3 -1.3 V |
| Power Supply |
006P DC 9V battery (heavy duty type) DC – 9V adapter input (AC/DC Power optional) |
| Dimension | 200 x 69 x 28mm |
