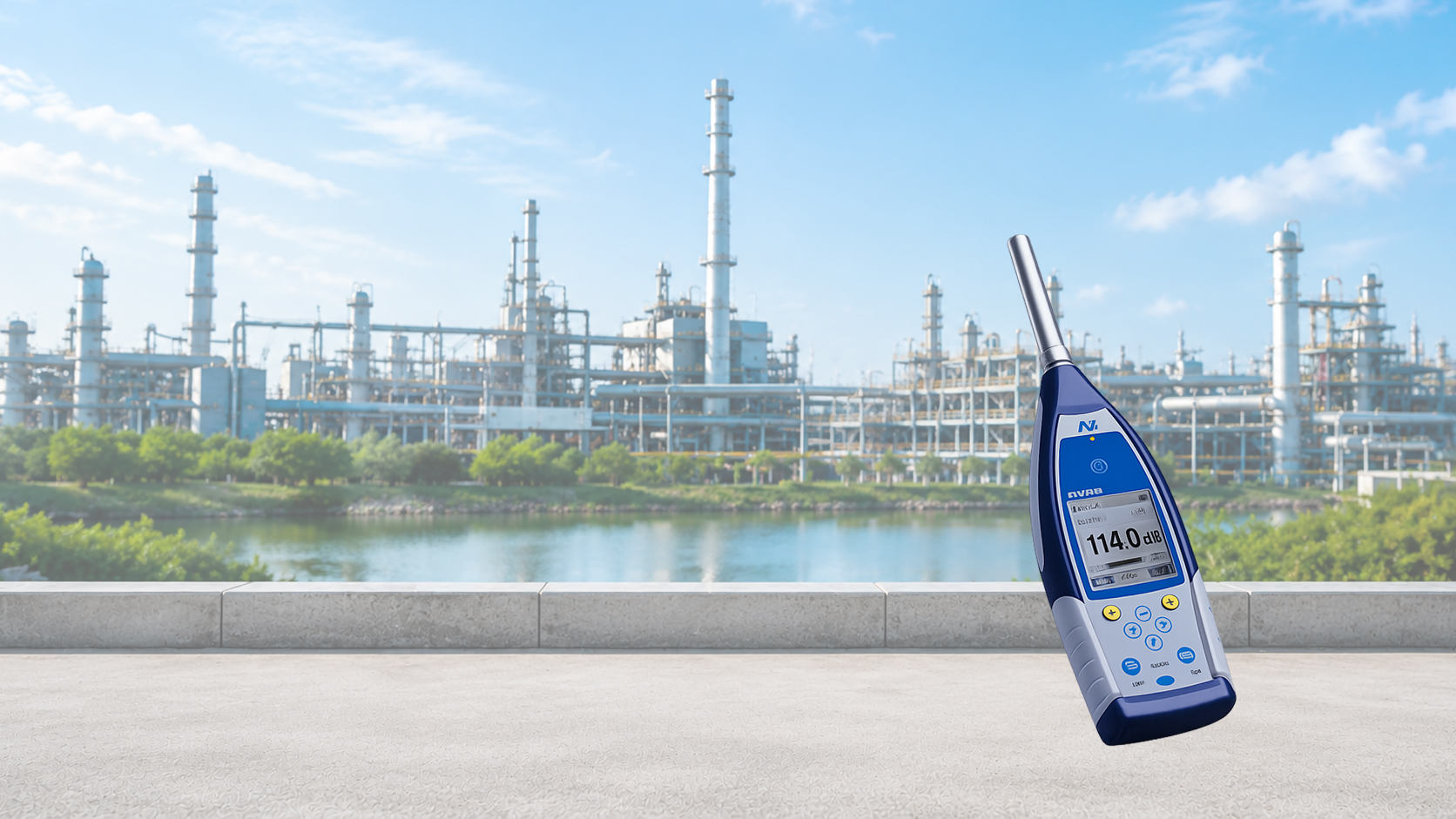

Model No : BSWA 309
Integrating Sound Level Meter with Octave Analyser manufacturer, supplier, and exporter, Mumbai-India.
The BSWA 309 is a digital sound level meter that complies with the IEC61672 Class. The use of high precision 24Bits AD converter makes the instrument to bea ideal choose for performing many kinds of measurement tasks, for example in environmental noise, vehicle noise and industrial application. A main interface can display most useful information of the instrument states and basic noise result. In addition, there is a three profiles interface display independently result that measured in parallel. All profiles can be defined different filters (A, C, Z) and detector time constants (Impulse, Fast and Slow).
Key Features
- 1/1 Octave in accordance with IEC61260-1:2014 and ANSI S1.11-2004
- Conforms to IEC61672-1 Class 1, IEC60531 Type 2, GB/T3785-1985 Class 2, GB/T17181-1997 Class 2
- A & C Weighting
- 100dB dynamic range
- Three profiles display
Technical Specifications
| Technical Specifications | |
|---|---|
| Frequency Range | 20Hz-12.5kHz |
| Resolution | 24Bits |
| Accuracy | Class 1 / Type 1 |
| Level Range | 20dBA~134dBA |
| Microphone | MPA309T:1/2 inch pre-polarized measurement microphone |
| Analog Output | AC (max 5VRMS output), DC (10mV/dB), RS-232 serial interface and USB Virtual serial port |
| Power Supply | 4x1.5V alkaline batteries (LR6/AA/AM3) |
| Dimension | W70 x H300 x D36 |
